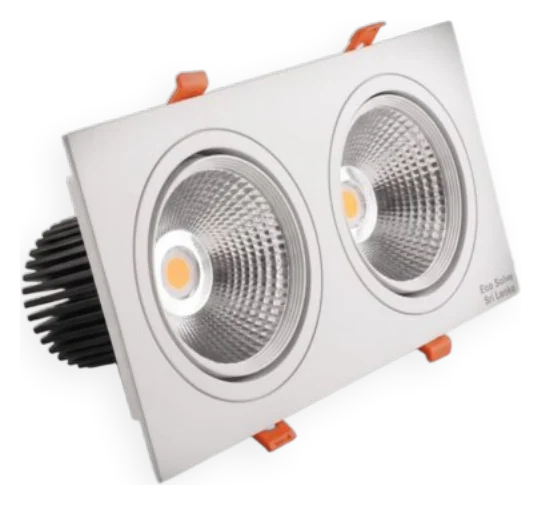

The Omni Duo Recessed Downlight uses a Cree USA light source, available from 12 W to 15 W. It delivers more than 100 lm/W with a CRI above 85 and IP 60 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.
- Series
- EK10 – Recessed 2-Way Task Light
- Wattage
- 12 W to 15 W
- Colour temperature
- 2700 K to 6500 K
- Efficacy
- >100 lm/W
- CRI
- >85
- Protection
- IP 60
Detail image · 1600 × 1000
Detail image · 1600 × 1000
Technical data
EK10 – Recessed 2-Way Task Light
Omni Duo Recessed Downlight
- Input voltage
- 200V - 240V AC
- Light source
- Cree USA
- Power factor
- >0.92
- THD
- <13%
- CRI
- >85
- IP rating
- IP 60
- Luminous efficacy
- >100 lm/W
- Beam angle
- 36° / 24°
- Fitting specification
- Powder Coated Aluminum
- Type of diffuser
- Ref
- Ceiling cut-out
- 220mm x 80mm
Colour temperature
- 2700K
- 3000K
- 4000K
- 6500K
Fitting colours
- Black
- White
Suited to
Sizes and wattages
| Wattage | Length × width | height |
|---|---|
| 12W x 2/15W x 2 | 255 x 140mm | 112mm |

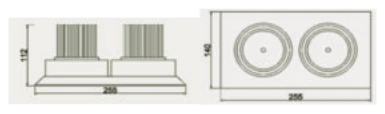

Dimensions

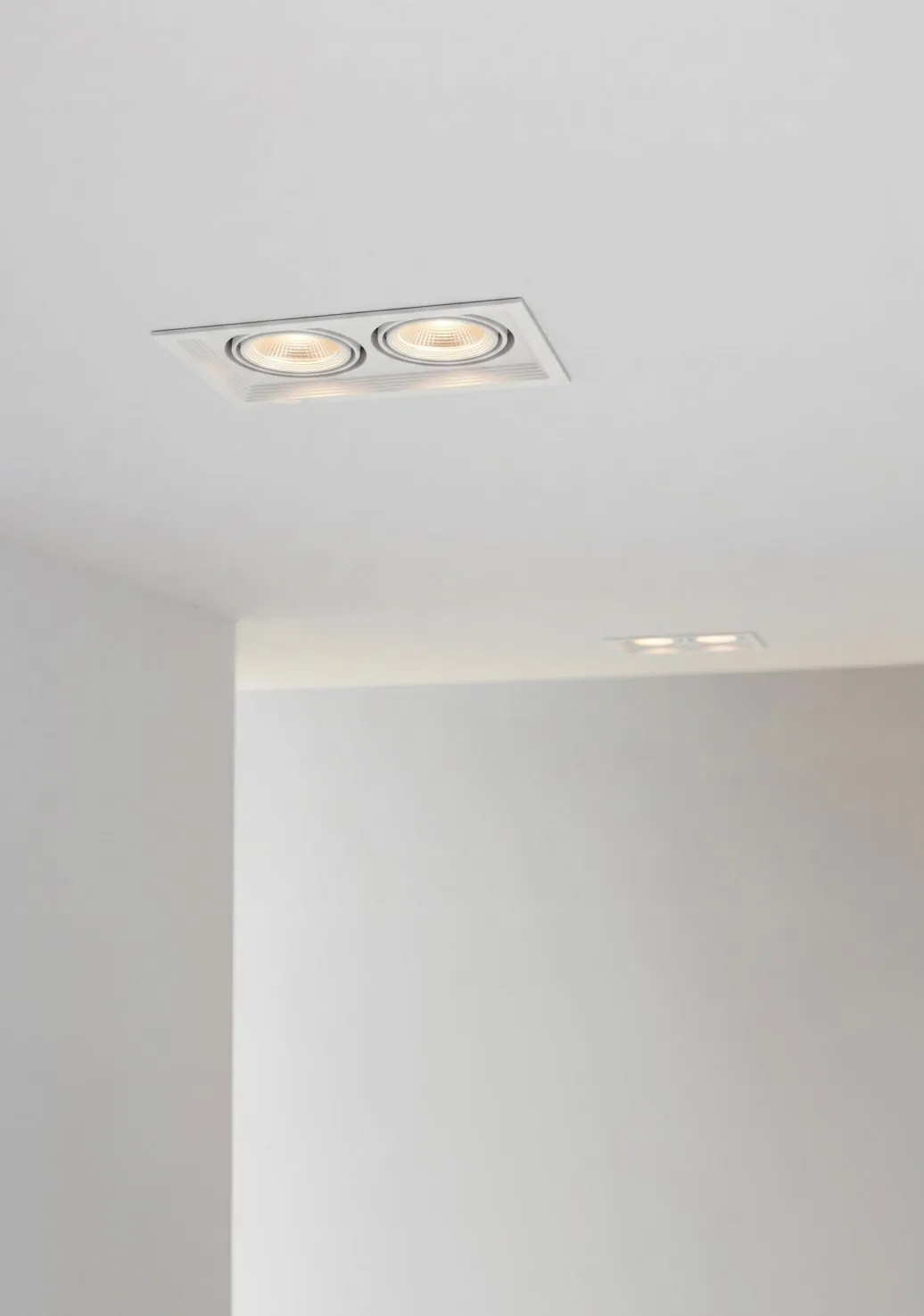

In use
Product in use
Product in use
Product in use
