The Round Recessed Downlight uses a LumiLED light source and comes in three sizes from 1 W to 10 W. It delivers more than 95 lm/W with a CRI above 85 and IP 60 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.
- Series
- Circular Recessed Down Light – Cube
- Wattage
- 1 W to 10 W
- Colour temperature
- 2700 K to 6500 K
- Efficacy
- >95 lm/W
- CRI
- >85
- Protection
- IP 60
Detail image · 1600 × 1000
Detail image · 1600 × 1000
Technical data
Circular Recessed Down Light – Cube
Round Recessed Downlight, Cube
- Input voltage
- 200V - 240V AC
- Light source
- LumiLED
- Power factor
- >0.92
- THD
- <13%
- CRI
- >85
- IP rating
- IP 60
- Luminous efficacy
- >95 lm/W
- Beam angle
- 150°
- Fitting specification
- Powder Coated Aluminum
Colour temperature
- 2700K
- 3000K
- 4000K
- 6500K
Fitting colours
- Black
- White
Suited to
Sizes and wattages
| Code | Wattage | Ceiling cut-out |
|---|---|---|
| 50X90 | 1W/3W | ∅60mm |
| 76X115 | 3W/5W/7W | ∅90 mm |
| 100DX140 | 10W | ∅110 mm |
Dimensions
Dimension drawing
In use
Product in use
Product in use
Product in use

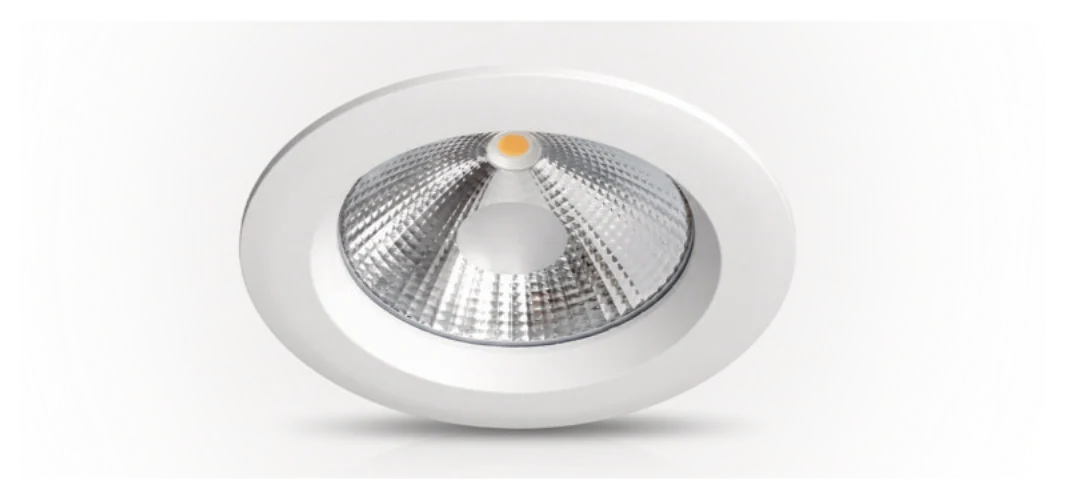

EX100-190 Circular RecessedRound Recessed Downlight, Reflector

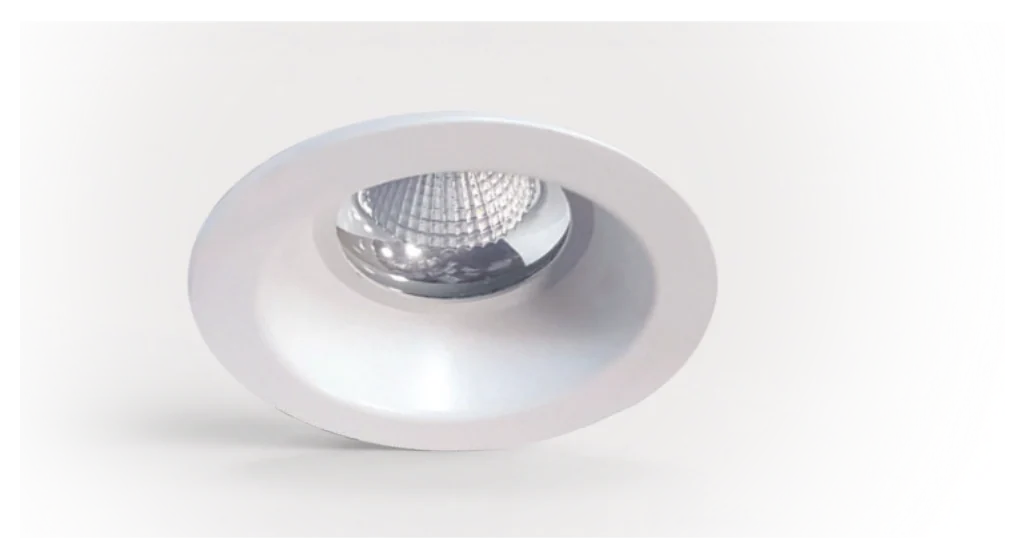

EX9 Circular RecessedCompact Round Recessed Downlight

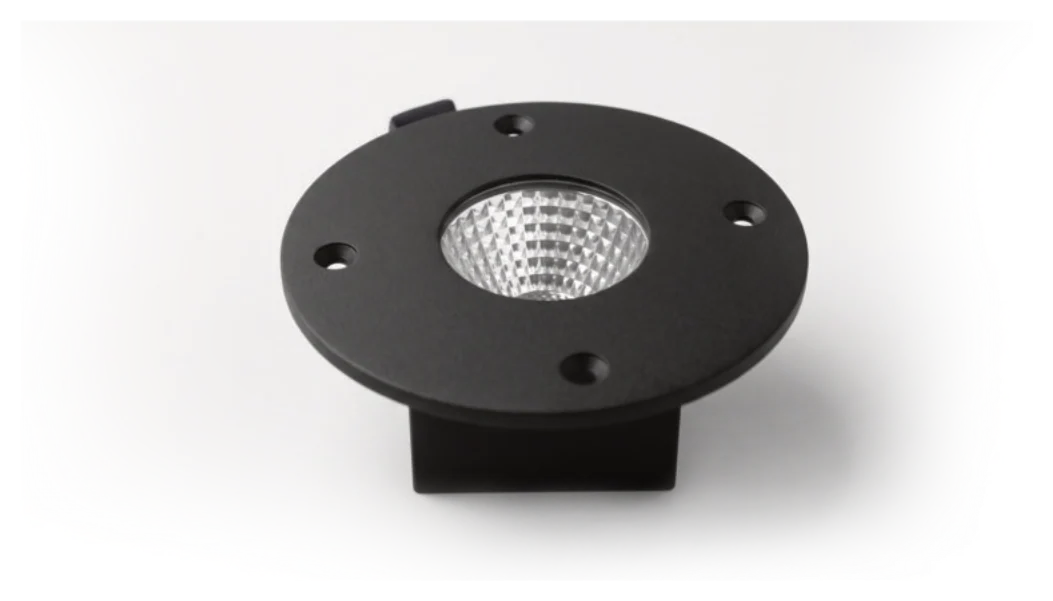

100D Recessed Down Light (for Concrete Slabs)Square Slab Ready Recessed Downlight

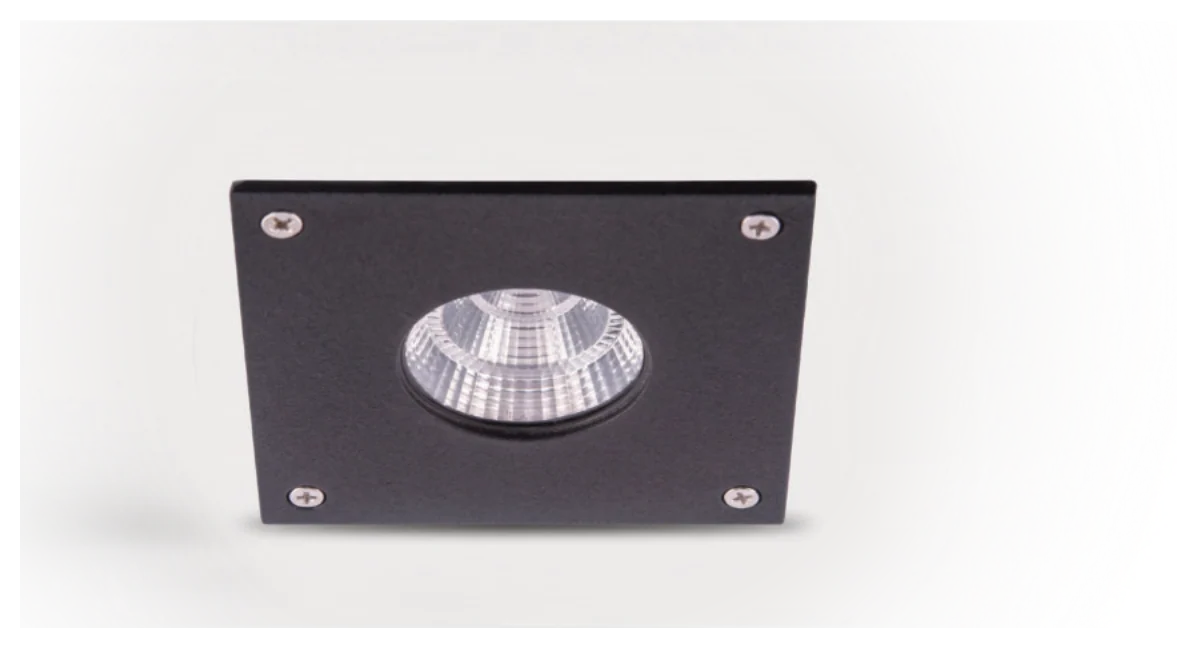

100×100 Recessed Down Light (for Concrete Slabs)Round Slab Ready Recessed Downlight

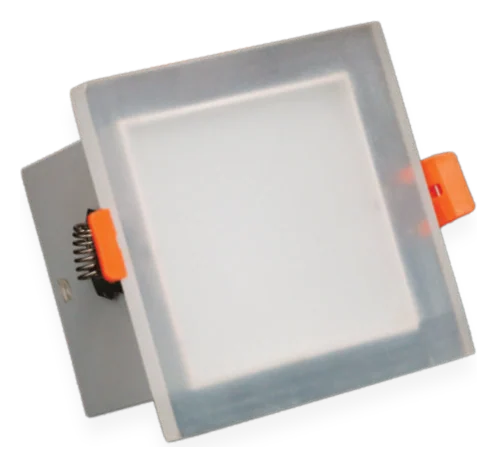

Square Recessed Down Light – CubeSquare Recessed Downlight, Cube

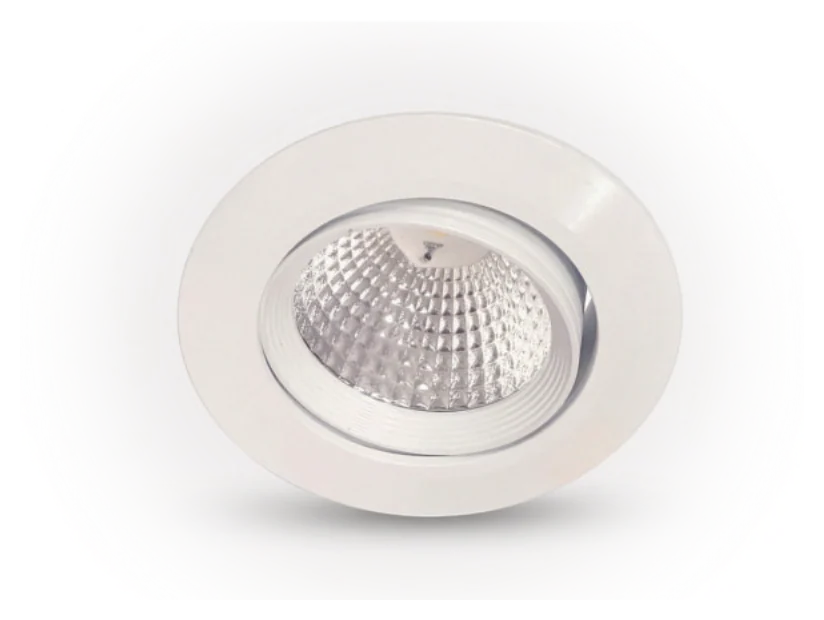

EX 13 – Recessed Task LightLUX Adjustable Recessed Spotlight EX13

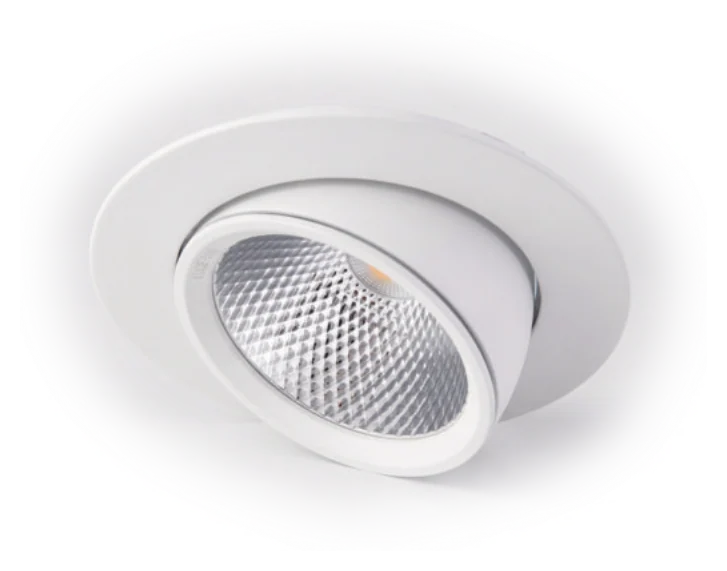

EX 16 – Recessed Rotatable Task LightLUX Adjustable Recessed Spotlight EX16

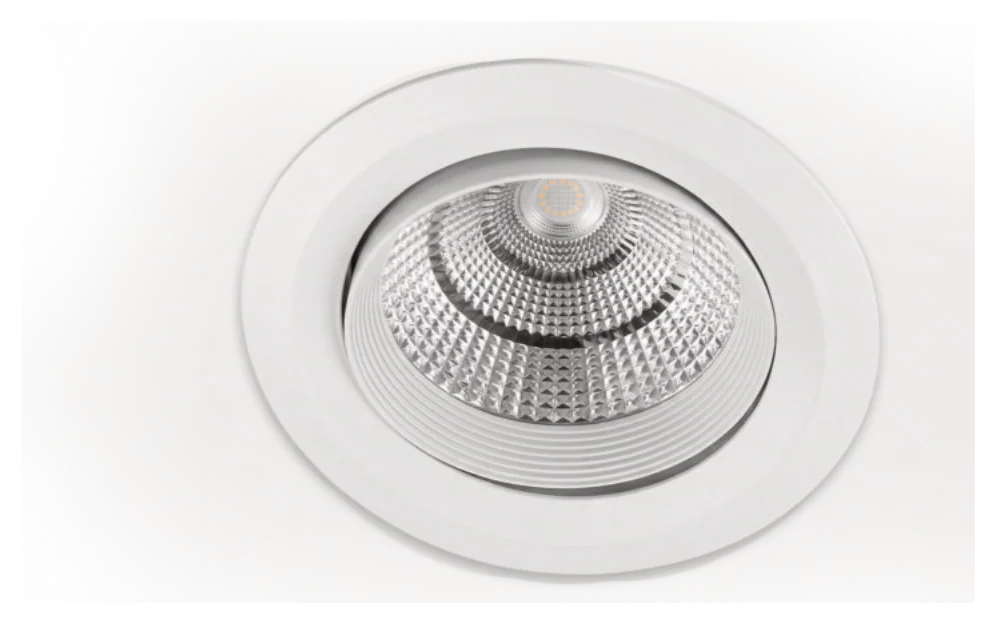

EK20 – Recessed Adjustable Spot LightLUX Round Gimbal Recessed SpotlightNeed help choosing the right light?
