Square Recessed Panel Light

LumiLED light source, 8 W to 18 W

The Square Recessed Panel Light uses a LumiLED light source and comes in three sizes from 8 W to 18 W. It delivers more than 108 lm/W with a CRI above 70 and IP 60 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.

Technical data

Square Recessed Panel Light

Square Sunk Panel Light

Square Recessed Panel Light

Input voltage
200V - 240V AC
Light source
LumiLED
Power factor
>0.92
THD
<13%
CRI
>70
IP rating
IP 60
Luminous efficacy
>108 lm/W
Beam angle
150°
Fitting specification
Powder Coated Aluminum

Colour temperature

  • 2700K
  • 3000K
  • 4000K
  • 6500K

Fitting colours

  • Black
  • White

Suited to

  • Residences
  • Showrooms
  • Hotels

Sizes and wattages

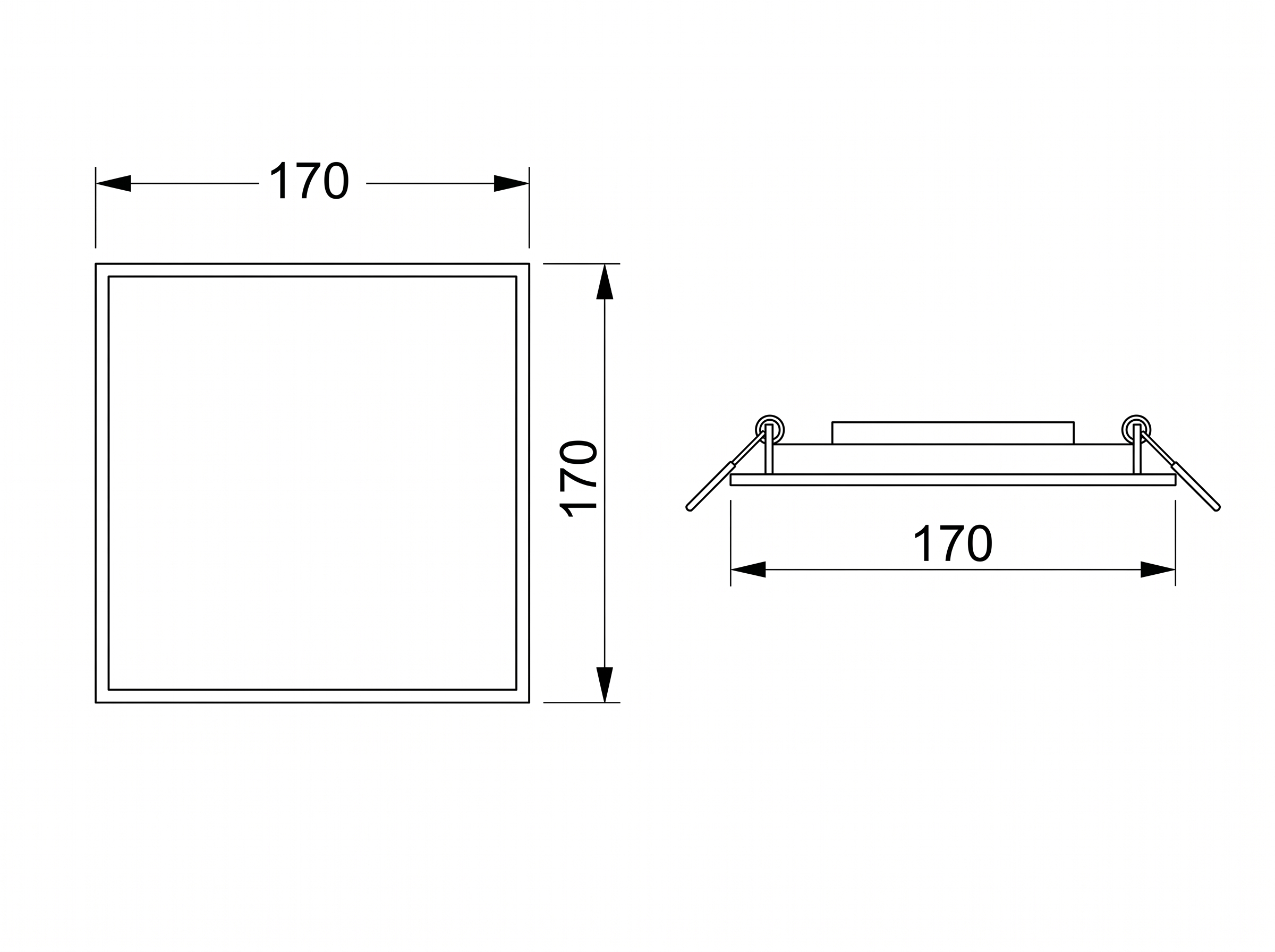

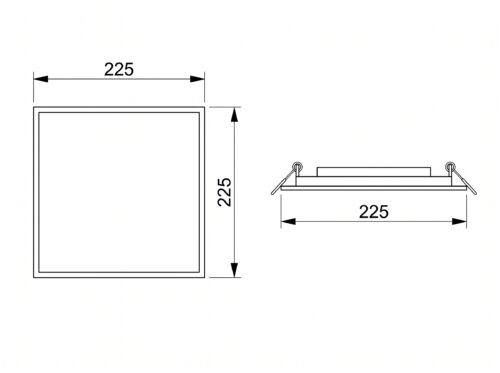

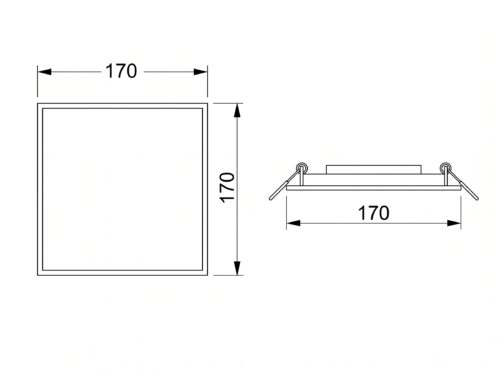

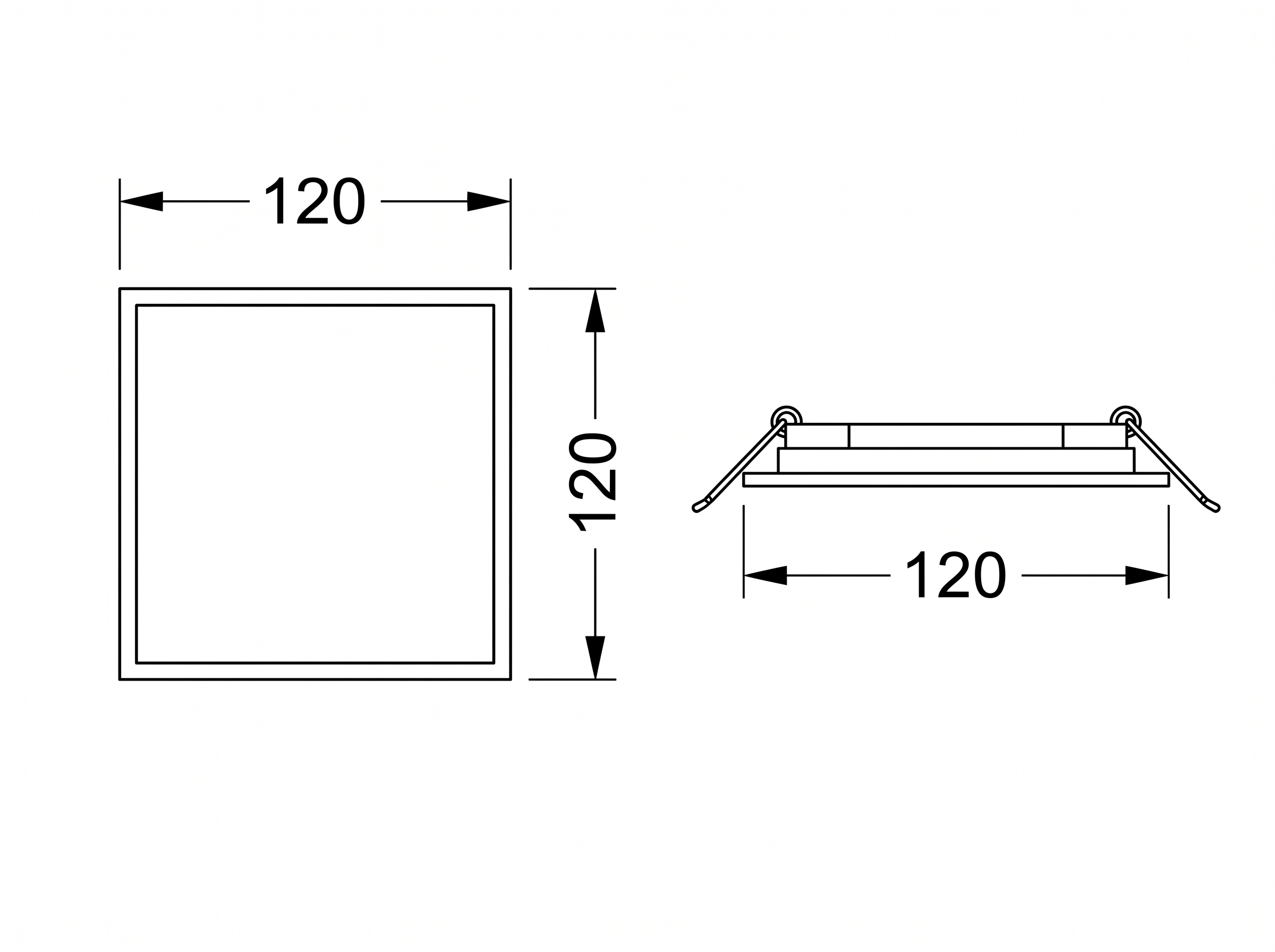

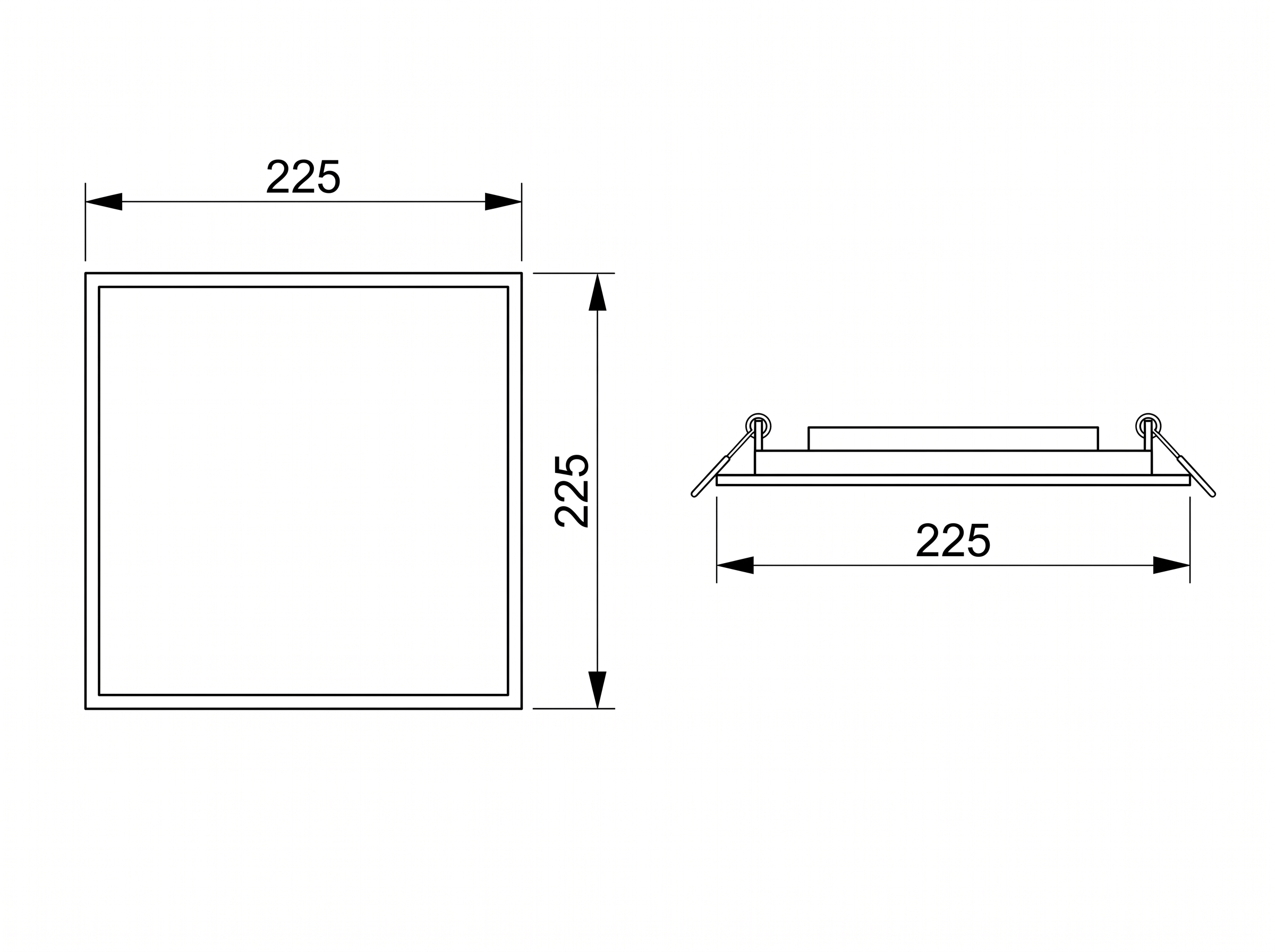

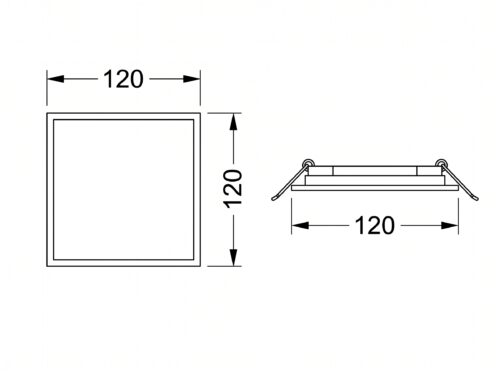

CodeWattageCeiling cut-outLength × width | heightDimensions
120X1208W110 x 110mm120 x 120mm | 30mmSquare Recessed Panel Light
170X17012W160 x 160mm170 x 170mm | 30mmSquare Recessed Panel Light
225X22518W215 x 215mm225 x 225mm | 30mmSquare Recessed Panel Light
