ProductsWall LightsArchitectural Wall Lights

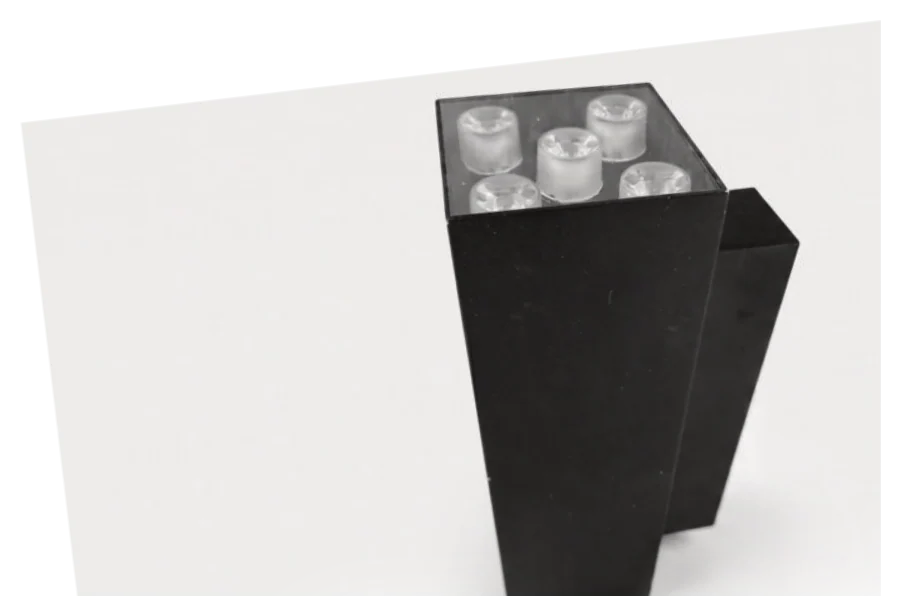

Tall Square Wall Light, Up & Down
Cree USA light source, 10 W to 14 W
The Tall Square Wall Light uses a Cree USA light source, available from 10 W to 14 W. It delivers more than 100 lm/W with a CRI above 85 and IP60 or IP65 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.
- Series
- 76×76×250mm – Wall Up Down Light
- Wattage
- 10 W to 14 W
- Colour temperature
- 2700 K to 6500 K
- Efficacy
- >100 lm/W
- CRI
- >85
- Protection
- IP60 / IP65
Detail image · 1600 × 1000
Detail image · 1600 × 1000
Technical data
76×76×250mm – Wall Up Down Light
Tall Square Wall Light, Up & Down
- Input voltage
- 200V - 240V AC / 12V - 24V DC
- Light source
- Cree USA
- Power factor
- >0.92
- THD
- <13%
- CRI
- >85
- IP rating
- IP60 / IP65
- Luminous efficacy
- >100 lm/W
- Beam angle
- 36°
- Fitting specification
- Powder Coated Aluminum
- Type of diffuser
- Lens
Colour temperature
- 2700K
- 3000K
- 4000K
- 6500K
Fitting colours
- Black
- White
Suited to
Sizes and wattages
| Wattage | Length × width | height |
|---|---|
| 10W/14W | 76 x 76mm | 250mm |
Dimensions
In use
Product in use
Product in use
Product in use
