Application image · 1920 × 1080

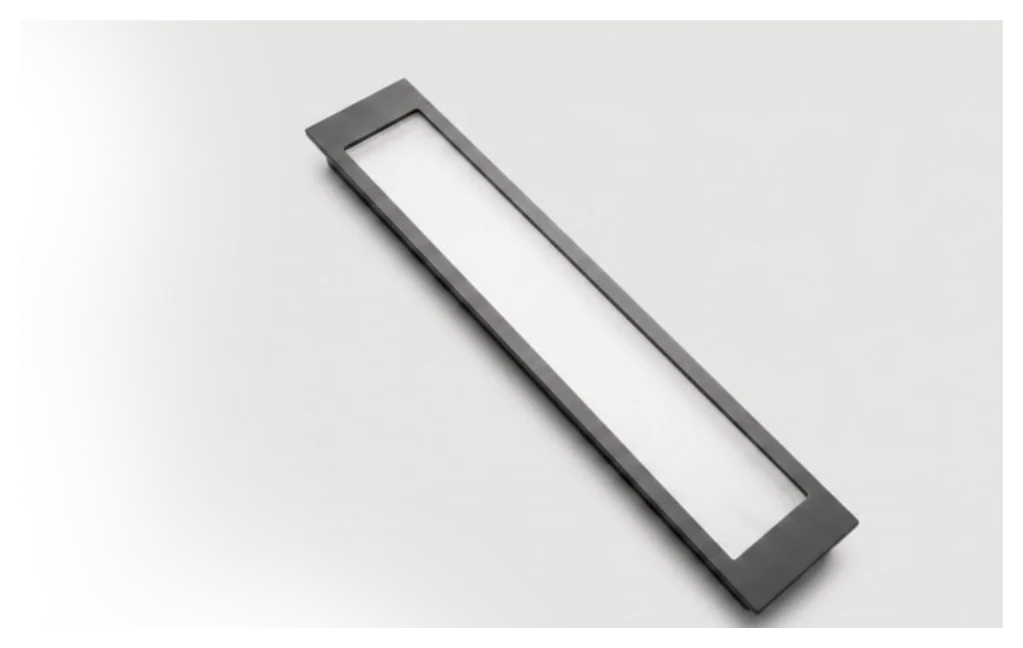

The Front Lit + Backlit Wall Light uses a LumiLED light source, rated at 16 W. It delivers more than 100 lm/W with a CRI above 85 and IP 60 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.
- Series
- 500×100 Front with Backlit Wall Light
- Wattage
- 16 W
- Colour temperature
- 2700 K to 6500 K
- Efficacy
- >100 lm/W
- CRI
- >85
- Protection
- IP 60
Detail image · 1600 × 1000
Detail image · 1600 × 1000
Technical data
500×100 Front with Backlit Wall Light
Front Lit + Backlit Wall Light
- Input voltage
- 200V - 240V AC
- Light source
- LumiLED
- Power factor
- >0.92
- THD
- <13%
- CRI
- >85
- IP rating
- IP 60
- Luminous efficacy
- >100 lm/W
- Fitting specification
- Powder Coated Aluminum
- Type of diffuser
- Dif
Colour temperature
- 2700K
- 3000K
- 4000K
- 6500K
Fitting colours
- Black
- White
Suited to
Sizes and wattages
| Wattage | Length × width |
|---|---|
| 16W | 500 x 100mm |
Dimensions
In use
Product in use
Product in use
Product in use
