ProductsWall LightsArchitectural Wall Lights

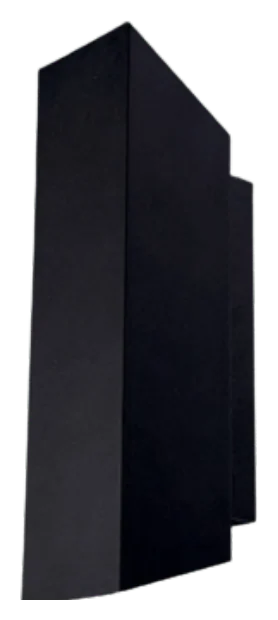

Angled Square Wall Light, Up & Down 50×50×200mm
Cree USA light source, 6 W
The Angled Square Wall Light uses a Cree USA light source, rated at 6 W. It delivers more than 100 lm/W with a CRI above 85 and IP60 or IP65 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.
- Series
- 50×50×200mm Angle Wall Up Down Light
- Wattage
- 6 W
- Colour temperature
- 2700 K to 6500 K
- Efficacy
- >100 lm/W
- CRI
- >85
- Protection
- IP60 / IP65
Detail image · 1600 × 1000
Detail image · 1600 × 1000
Technical data
50×50×200mm Angle Wall Up Down Light
Angled Square Wall Light, Up & Down 50×50×200mm
- Input voltage
- 200V - 240V AC
- Light source
- Cree USA
- Power factor
- >0.92
- THD
- <13%
- CRI
- >85
- IP rating
- IP60 / IP65
- Luminous efficacy
- >100 lm/W
- Beam angle
- 36°
- Fitting specification
- Powder Coated Aluminum
- Type of diffuser
- Lens
Colour temperature
- 2700K
- 3000K
- 4000K
- 6500K
Fitting colours
- Black
- White
Suited to
Sizes and wattages
| Wattage | Length × width | height |
|---|---|
| 6W | 50 x 50mm | 200mm |
Dimensions
In use
Product in use
Product in use
Product in use
