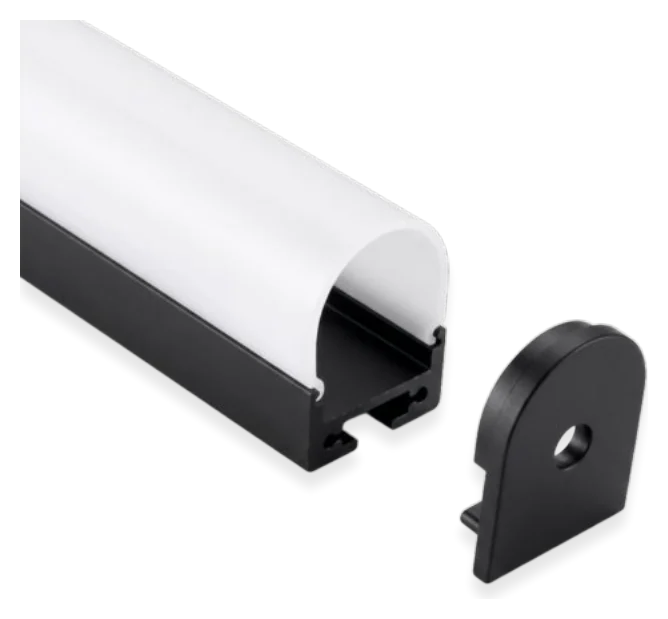

Semi Circular Surface Linear Profile
LumiLED light source, 16 W per metre
The Semi Circular Surface Linear Profile uses a LumiLED light source, rated at 16 W per metre. It delivers more than 100 lm/W with a CRI above 85 and IP 60 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.
- Series
- ESCN623B Linear Light
- Wattage
- 16 W
- Colour temperature
- 2700 K to 6500 K
- Efficacy
- >100 lm/W
- CRI
- >85
- Protection
- IP 60
Detail image · 1600 × 1000
Detail image · 1600 × 1000
Technical data
ESCN623B Linear Light
Semi Circular Surface Linear Profile
- Input voltage
- 200V - 240V AC / 12V - 24V DC
- Light source
- LumiLED
- Power factor
- >0.92
- THD
- <13%
- CRI
- >85
- IP rating
- IP 60
- Luminous efficacy
- >100 lm/W
- Beam angle
- 120°
- Fitting specification
- Powder Coated Aluminum
- Type of diffuser
- Dif
Colour temperature
- 2700K
- 3000K
- 4000K
- 6500K
Fitting colours
- Black
- White
Suited to
Sizes and wattages
| Wattage | Length |
|---|---|
| 16W per Meter | 1M |
Dimensions
In use
Product in use
Product in use
Product in use

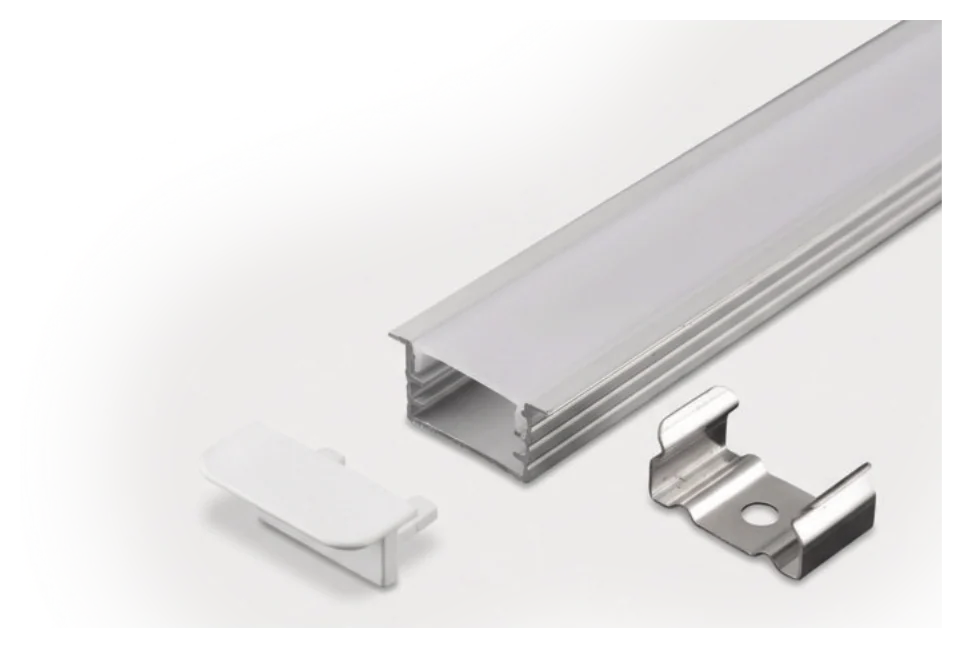

CN530B Strip LightSlim Architectural Strip CN530B

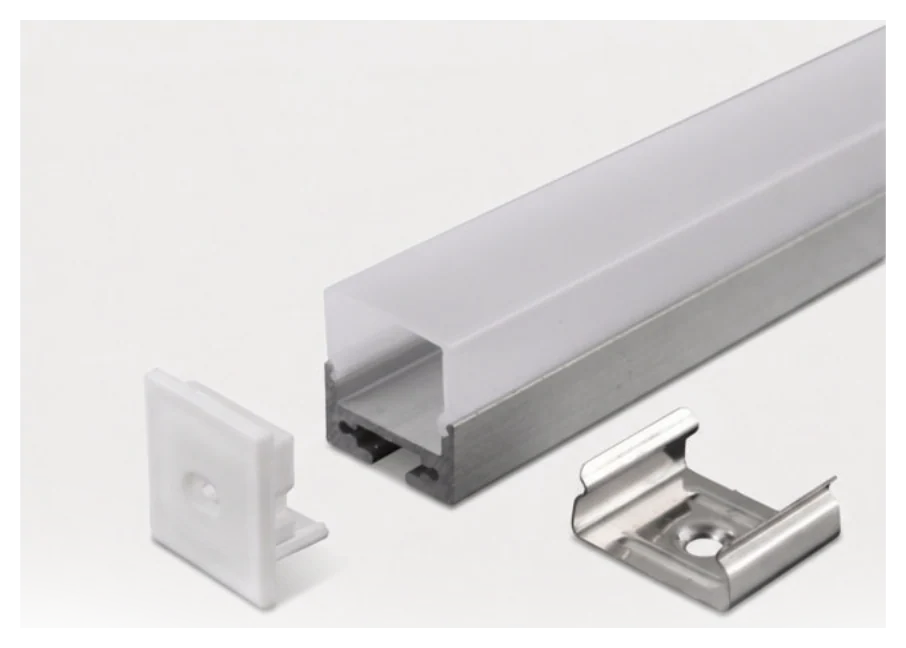

ESCN623 Linear LightSquare Surface Linear Profile

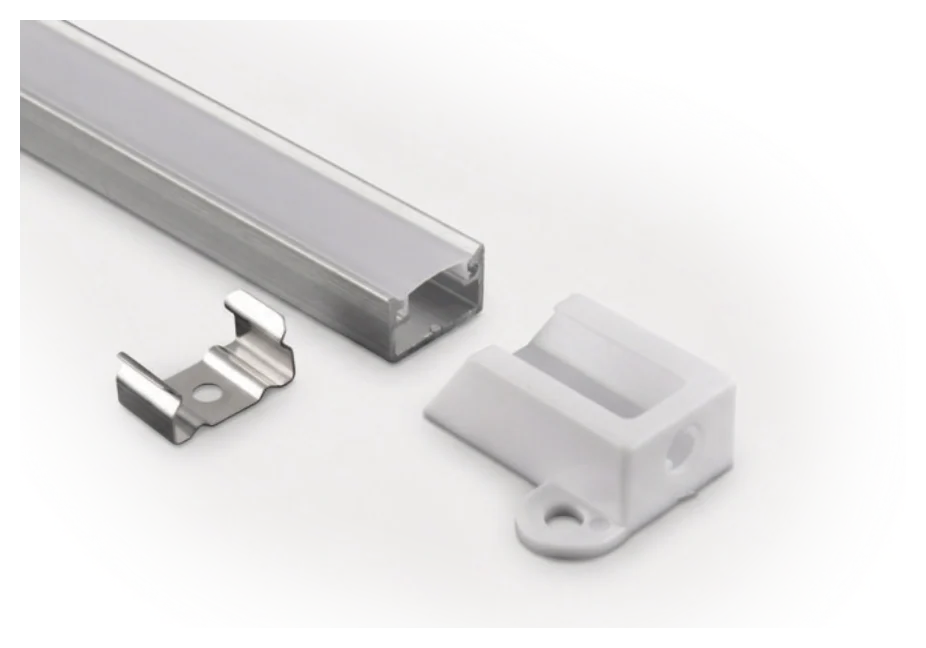

CN506 Strip LightSlim Architectural Strip CN506

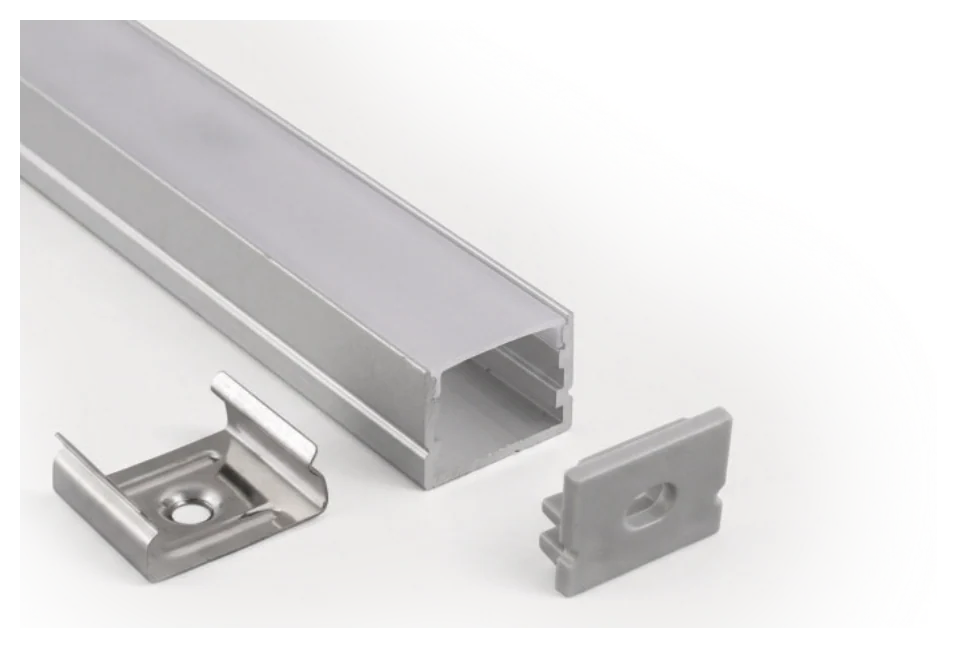

C 121 Strip LightSlim Architectural Strip C121

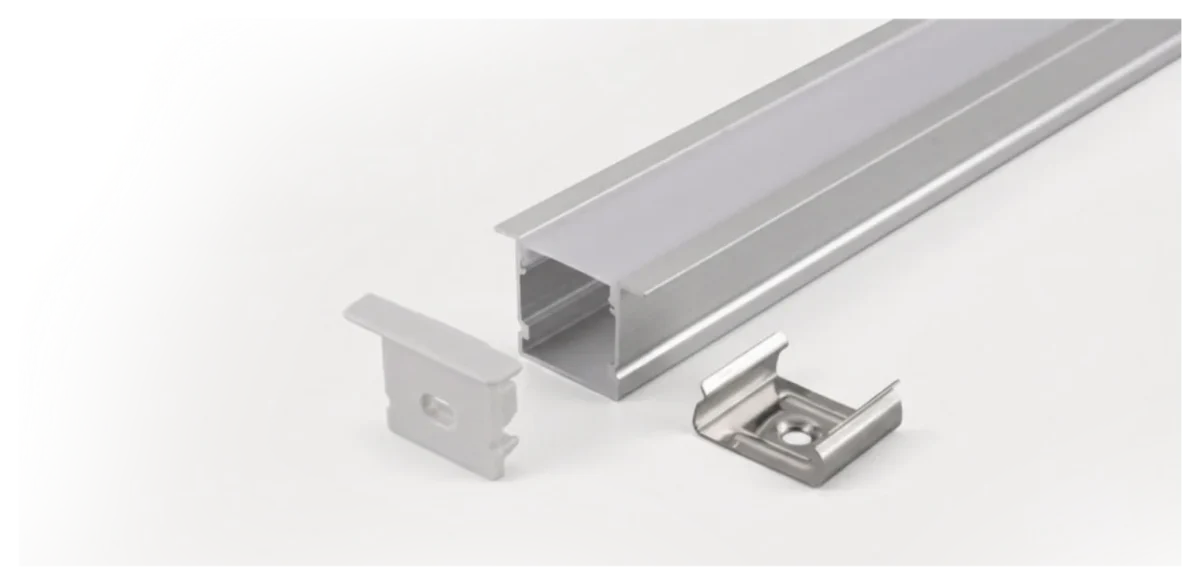

CN122B Linear LightSlim Architectural Strip CN122B

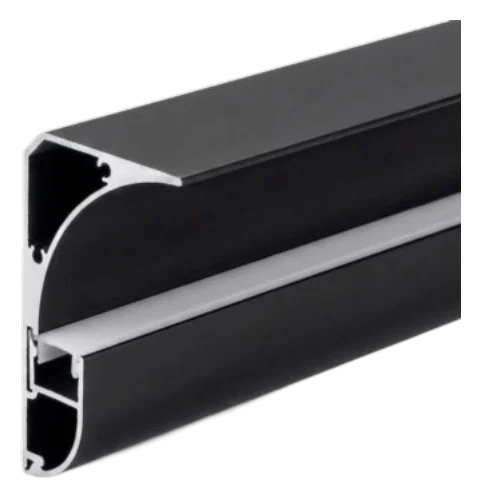

CN YQ015 Skirting LightWide Skirting Profile

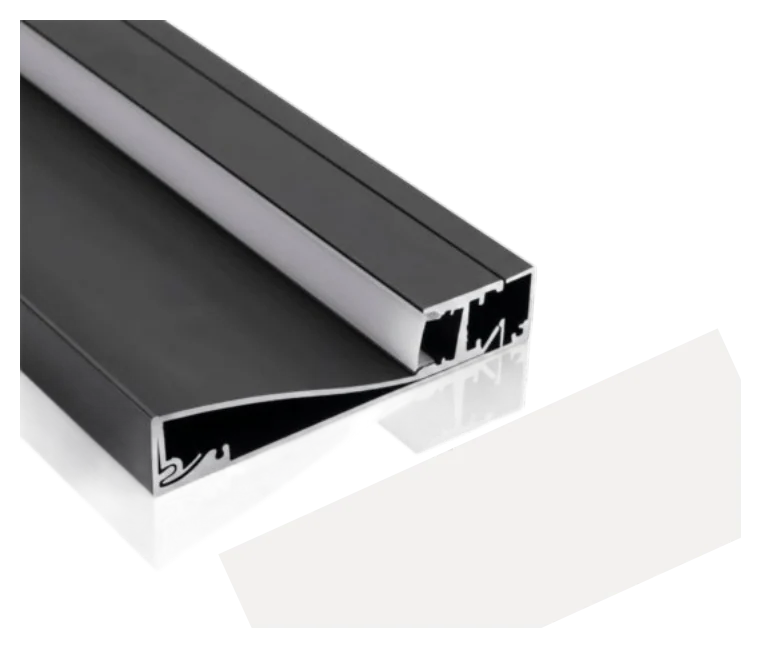

CN YQ012 Strip LightTall Skirting Profile

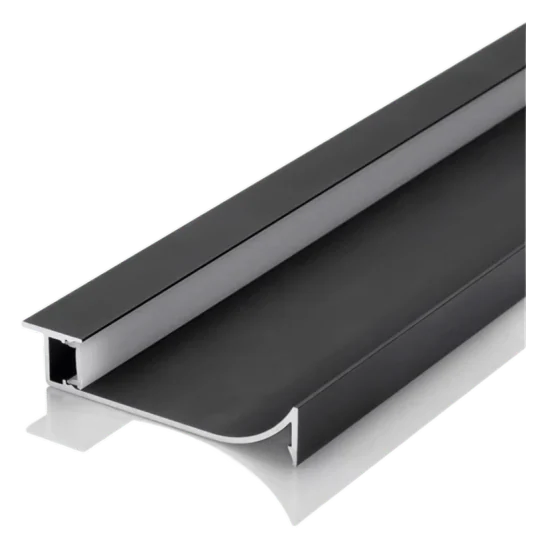

CN YQ013 Strip LightThin Skirting ProfileNeed help choosing the right light?
