The Angled Step Light uses a Cree USA light source, rated at 1 W. It delivers more than 100 lm/W with a CRI above 85 and IP60 or IP65 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.
- Series
- 85×85 mm Step Light
- Wattage
- 1 W
- Colour temperature
- 2700 K to 6500 K
- Efficacy
- >100 lm/W
- CRI
- >85
- Protection
- IP60 / IP65
Detail image · 1600 × 1000
Detail image · 1600 × 1000
Technical data
85×85 mm Step Light

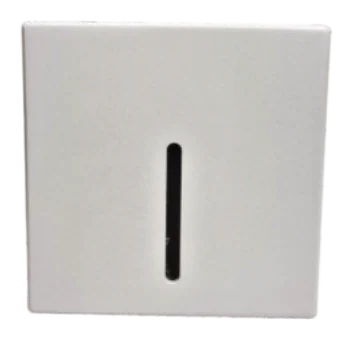

Angled Step Light, Slim Slot
- Input voltage
- 200V - 240V AC / 12V - 24V DC
- Light source
- Cree USA
- Power factor
- >0.92
- THD
- <13%
- CRI
- >85
- IP rating
- IP60 / IP65
- Luminous efficacy
- >100 lm/W
- Beam angle
- 24°
- Fitting specification
- Powder Coated Aluminum
- Type of diffuser
- Lens
- Cut-out
- 50mm x 72mm
Colour temperature
- 2700K
- 3000K
- 4000K
- 6500K
Fitting colours
- Black
- White
Suited to
Sizes and wattages
| Wattage | Length × width |
|---|---|
| 1W | 85 x 85mm |
Dimensions
