Application image · 1920 × 1080

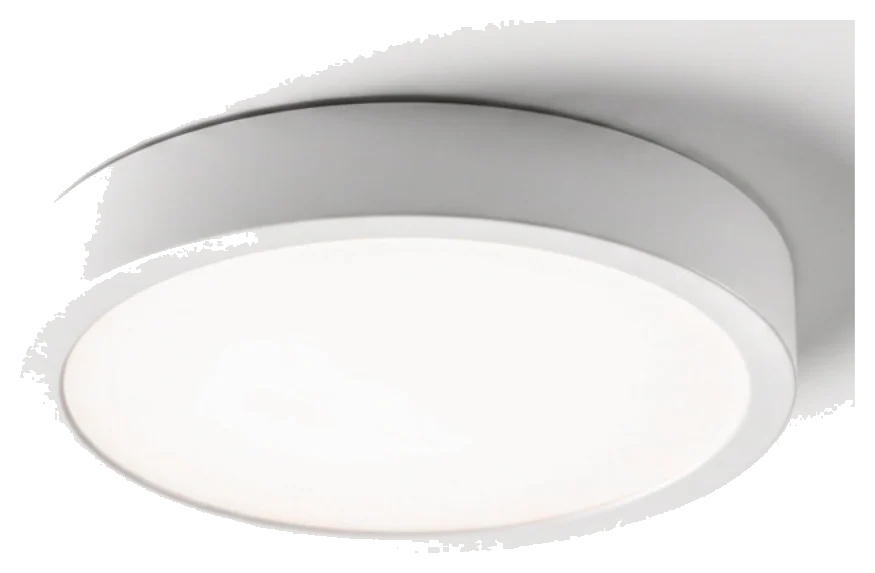

The Round Surface Panel Light uses a LumiLED light source and comes in three sizes from 8 W to 18 W. It delivers more than 108 lm/W with a CRI above 70 and IP 60 protection. Available in black or white powder coated aluminum, from 2700 K to 6500 K.
- Series
- Round Surf Panel Light
- Wattage
- 8 W to 18 W
- Colour temperature
- 2700 K to 6500 K
- Efficacy
- >108 lm/W
- CRI
- >70
- Protection
- IP 60
Detail image · 1600 × 1000
Detail image · 1600 × 1000
Technical data
Round Surf Panel Light
Round Surface Panel Light
- Input voltage
- 200V - 240V AC
- Light source
- LumiLED
- Power factor
- >0.92
- THD
- <13%
- CRI
- >70
- IP rating
- IP 60
- Luminous efficacy
- >108 lm/W
- Beam angle
- 150°
- Fitting specification
- Powder Coated Aluminum
Colour temperature
- 2700K
- 3000K
- 4000K
- 6500K
Fitting colours
- Black
- White
Suited to
Sizes and wattages
| Code | Wattage | Length × width | height | Dimensions |
|---|---|---|---|
| 120D | 8W | 120 x 120mm | 30mm |  |
| 170D | 12W | 170 x 170mm | 30mm |  |
| 225D | 18W | 225 x 225mm | 30mm |  |
